pingouin.qqplot

pingouin.qqplot(x, dist='norm', sparams=(), confidence=0.95, figsize=(5, 4), ax=None)[source]

Quantile-Quantile plot.

Parameters
xarray_like

Sample data.

diststr or stats.distributions instance, optional

Distribution or distribution function name. The default is ‘norm’ for a normal probability plot. Objects that look enough like a scipy.stats.distributions instance (i.e. they have a ppf method) are also accepted.

sparamstuple, optional

Distribution-specific shape parameters (shape parameters, location, and scale). See scipy.stats.probplot() for more details.

confidencefloat

Confidence level (.95 = 95%) for point-wise confidence envelope. Pass False for no envelope.

figsizetuple

Figsize in inches

axmatplotlib axes

Axis on which to draw the plot

Returns
axMatplotlib Axes instance

Returns the Axes object with the plot for further tweaking.

Notes

This function returns a scatter plot of the quantile of the sample data x against the theoretical quantiles of the distribution given in dist (default = ‘norm’).

The points plotted in a Q–Q plot are always non-decreasing when viewed from left to right. If the two distributions being compared are identical, the Q–Q plot follows the 45° line y = x. If the two distributions agree after linearly transforming the values in one of the distributions, then the Q–Q plot follows some line, but not necessarily the line y = x. If the general trend of the Q–Q plot is flatter than the line y = x, the distribution plotted on the horizontal axis is more dispersed than the distribution plotted on the vertical axis. Conversely, if the general trend of the Q–Q plot is steeper than the line y = x, the distribution plotted on the vertical axis is more dispersed than the distribution plotted on the horizontal axis. Q–Q plots are often arced, or “S” shaped, indicating that one of the distributions is more skewed than the other, or that one of the distributions has heavier tails than the other.

In addition, the function also plots a best-fit line (linear regression) for the data and annotates the plot with the coefficient of determination \(R^2\). Note that the intercept and slope of the linear regression between the quantiles gives a measure of the relative location and relative scale of the samples.

References

1

https://en.wikipedia.org/wiki/Q%E2%80%93Q_plot

2

https://github.com/cran/car/blob/master/R/qqPlot.R

3

Fox, J. (2008), Applied Regression Analysis and Generalized Linear Models, 2nd Ed., Sage Publications, Inc.

Examples

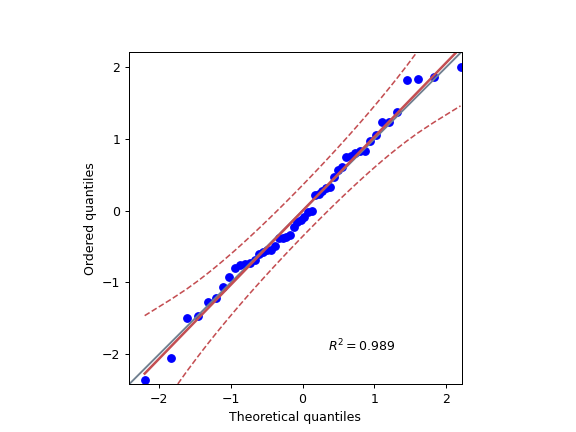

Q-Q plot using a normal theoretical distribution:

>>> import numpy as np
>>> import pingouin as pg
>>> np.random.seed(123)
>>> x = np.random.normal(size=50)
>>> ax = pg.qqplot(x, dist='norm')
../_images/pingouin-qqplot-1.png

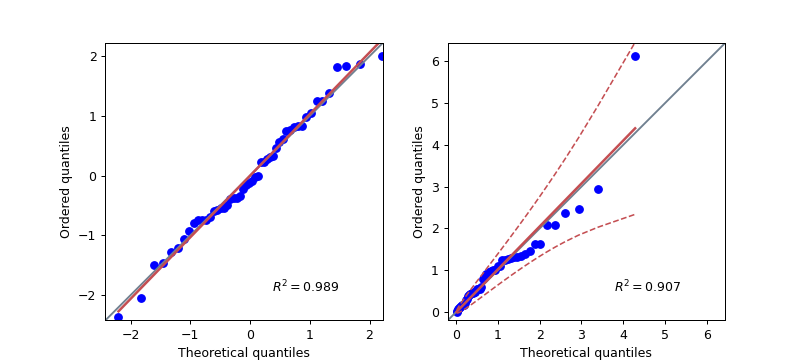

Two Q-Q plots using two separate axes:

>>> import numpy as np
>>> import pingouin as pg
>>> import matplotlib.pyplot as plt
>>> np.random.seed(123)
>>> x = np.random.normal(size=50)
>>> x_exp = np.random.exponential(size=50)
>>> fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(9, 4))
>>> ax1 = pg.qqplot(x, dist='norm', ax=ax1, confidence=False)
>>> ax2 = pg.qqplot(x_exp, dist='expon', ax=ax2)
../_images/pingouin-qqplot-2.png

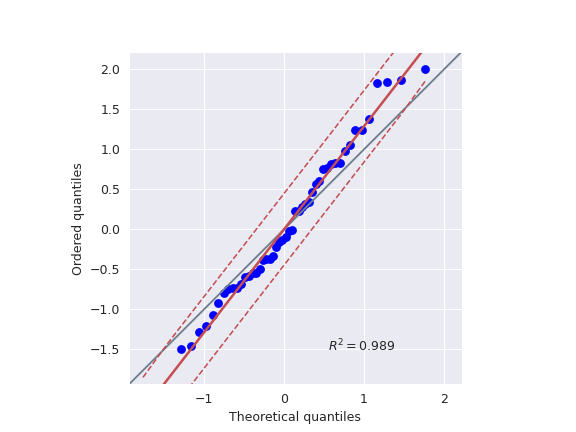

Using custom location / scale parameters as well as another Seaborn style

>>> import numpy as np
>>> import seaborn as sns
>>> import pingouin as pg
>>> import matplotlib.pyplot as plt
>>> np.random.seed(123)
>>> x = np.random.normal(size=50)
>>> mean, std = 0, 0.8
>>> sns.set_style('darkgrid')
>>> ax = pg.qqplot(x, dist='norm', sparams=(mean, std))
../_images/pingouin-qqplot-3.png
